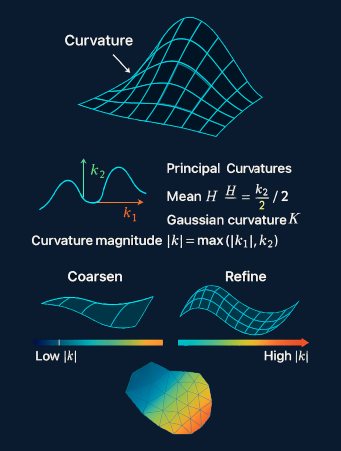

Curvature: The Secret Behind High-Quality Meshes

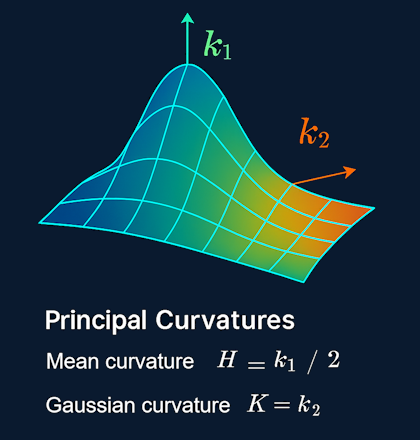

Every point on a smooth surface has two main curvatures:

• \(k_1\) : direction of maximum bending
• \(k_2\) : direction of minimum bending

From these come:

• Mean curvature:  \( H = \frac{k_1 + k_2}{2} \)
• Gaussian curvature:  \( K = k_1 \cdot k_2 \)
• Curvature magnitude:  \( |k| = \max(|k_1|, |k_2|) \)

In practical terms:

• High \(k\): sharp features, tight bends, fillets, ridges
• Low \(k\): nearly flat or gently curved regions

These values guide mesh density decisions directly.

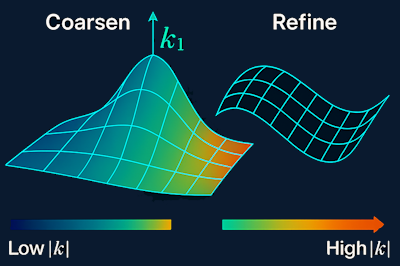

Most adaptive meshing algorithms use a straightforward principle:

Refine where curvature is high; coarsen where it is low.

This approach:

• Accurately captures geometry
• Avoids extra elements
• Boosts solver performance
• Reduces mesh skew and distortion

The typical function ties element size to curvature magnitude using defined parameters:

\( h(p) = \frac{1}{\alpha + \beta |k(p)|} \)

Where:

• \( h(p) \) = target element size at point \( p \)
• \( |k(p)| \) = curvature magnitude
• \( \alpha, \beta \) = tuning parameters

High curvature   small \( h \)
Low curvature   large \( h \)

This principle underpins curvature-based mesh refinement strategies.

Not all sharp edges, ridges, or valleys are detailed in CAD models, but curvature can reveal them.

Feature identification through curvature:

• Sharp edges: large jumps between adjacent faces
• Ridges/valleys: elevated curvature along curves
• Flat areas: nearly zero curvature

For this reason, curvature analysis is key for:

• Segmentation
• Extracting feature lines
• Building boundary layers
• Anticipating mesh quality

Curvature acts as a geometric fingerprint.

Analyzing curvature fields can indicate:

• Where elements will elongate
• Locations prone to skewness
• Areas likely to require dense refinement
• Potential problem zones in topology

Rather than discovering mesh problems after generation, curvature lets engineers anticipate issues ahead of time.

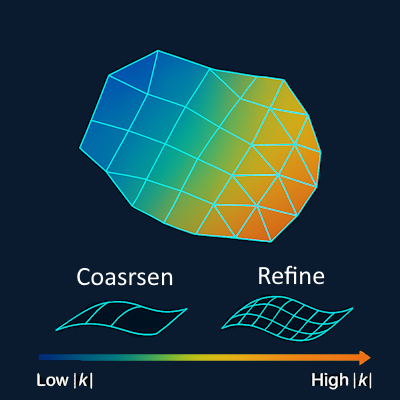

Curvature heatmaps are invaluable diagnostics in CAE:

• They immediately showcase high-curvature spots, blends, hidden details, and zones needing refinement, as well as areas suitable for coarser meshes.
• They reveal subtle features that may be invisible in CAD but critical for meshing, such as small fillets, tight bends, or intricate blends.
• They help identify potential meshing challenges before generation, allowing engineers to adjust parameters or simplify geometry proactively.

Such visuals (like heatmaps with segmentation) instantly communicate the structure of the geometry.

Curvature heatmaps are invaluable diagnostics in CAE:

• Review curvature before meshing

A fast heatmap check can prevent wasted time.

• Let curvature dictate element size

Allow local curvature to determine necessary detail.

• Pair curvature with feature detection

Use curvature for highlighting; formalize with detection methods.

• Do not over-refine

Curvature data can be noisy—apply smoothing.

• Apply curvature to verify CAD integrity

Unexpected spikes often signal problematic blends, small fillets, defects, or unintended features. Curvature serves as a debugging asset.

Curvature serves as a debugging asset.

Curvature is more than a geometric measure; it's a critical influence behind strong meshes. It dictates:

• Element counts
• Refinement locations
• Simulation accuracy
• Solver reliability
• Computation time

In short, curvature is a critical influence behind strong meshes.

If geometry forms the backbone of CAE, curvature is its guide. It points out where shapes turn, where the mesh must adapt, and where solvers may struggle. Mastering curvature transforms mesh design from guesswork to precise engineering.
